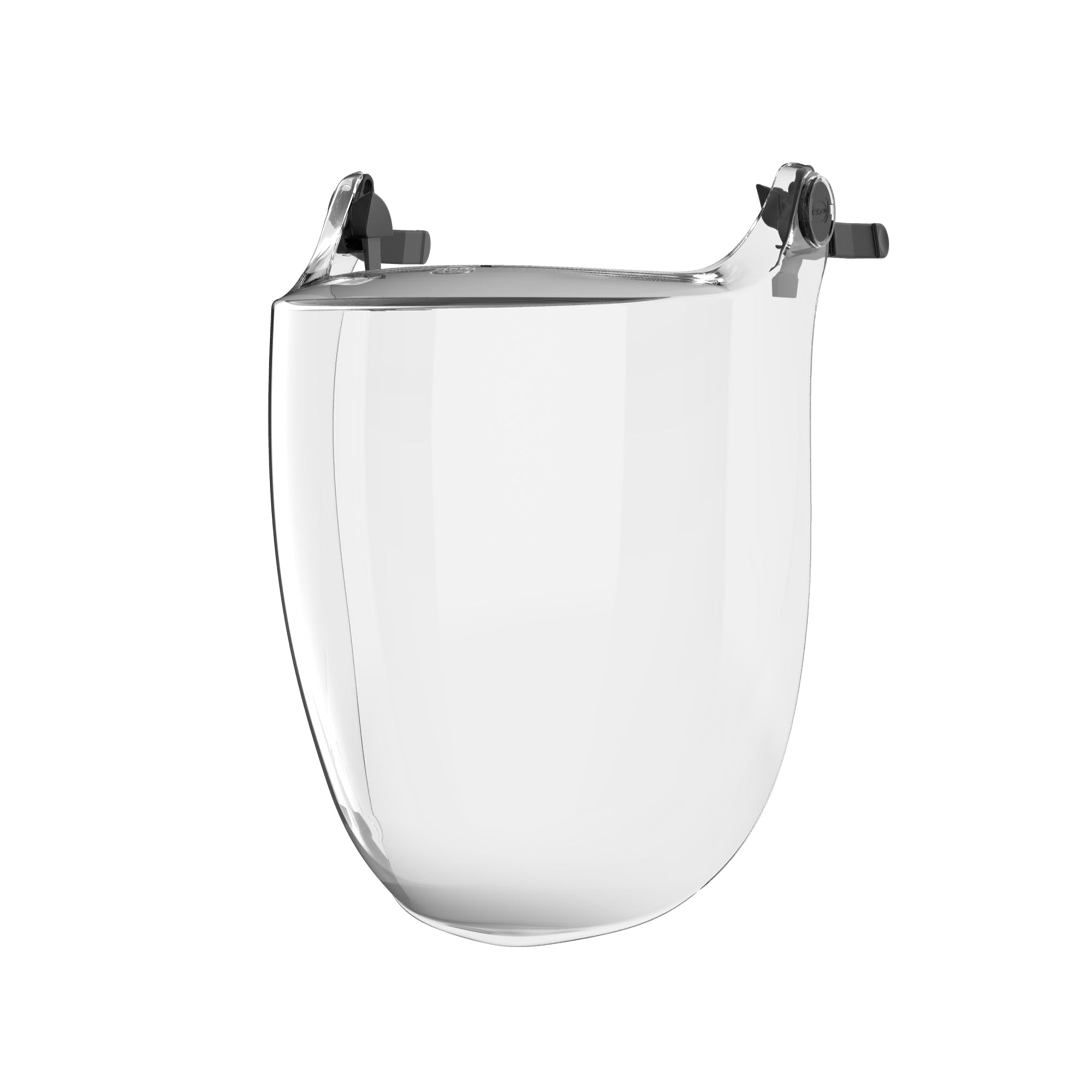

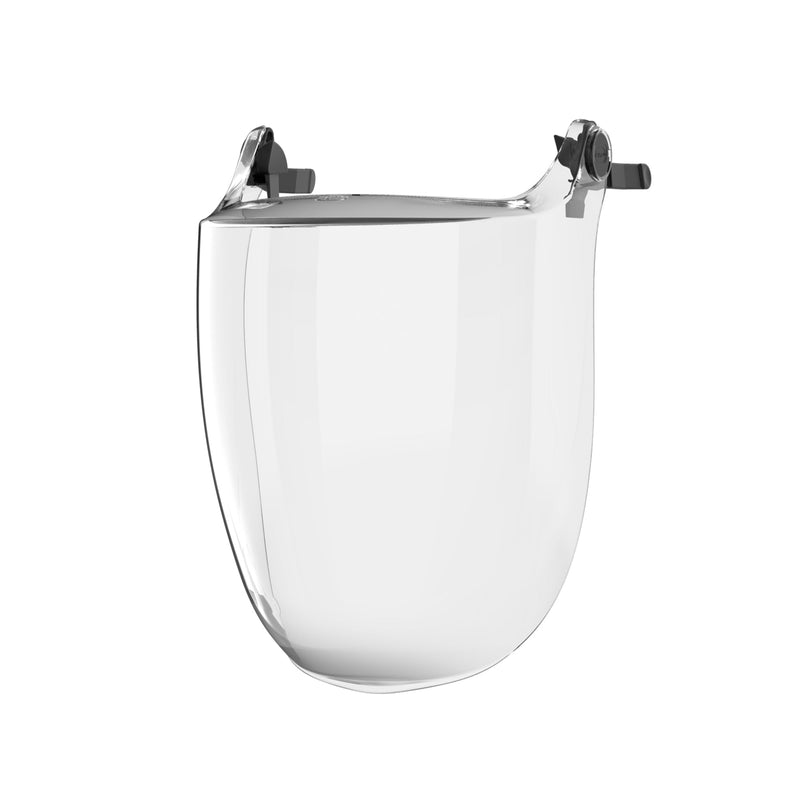

EVOGuard®C5 MAX Industrial Visor
Compatible with JSP EVO® helmets, excluding EVO®6100 and EVO® VISTA® ranges.
Features & Benefits
- A Impact Rating - High Energy Impact (190m/s) *when fitted to a compatible JSP EVO® helmet
- T - High Speed Particles at Extreme Temperatures
- 1 - Optical Class
- 3 - Liquid splash
- 9 - Molten Metals
- K - Anti Scratch
- N - Anti Mist
- 8 - Short Circuit Electric Arc*
- 1 - Electric Arc*
- 0 - Visible Light Transmittance Class*
- 2C - 1. 2 - UV Filter with Enhanced Colour Recognition
- Polycarbonate Clear Visor
- Weight (g) - 216g
VISION
The optical class 1 visor offers a panoramic view with minimal distortion, ideal for comfortable all
day wear.
COMPATIBILITY
EVOGuard® visors maximise compatibility with JSP
half masks, disposable respirators, prescription glasses
and the Sonis® mounted ear defender range.
UV PROTECTION
Visor filters harmful UV radiation to protect the
eyes whilst also offering high light transmission and
enhanced colour recognition.
IMPACT
The EVOGuard®C5 MAX helmet system offers A-rated impact resistance for protection against high energy impacts.
COVERAGE
EVOGuard® visors provide comprehensive facial
coverage without limiting movement. EVOGuard®
MAX visors offer enhanced coverage with an
integral chinguard.
ELECTRIC ARC PROTECTION
EVOGuard®C5 MAX meets the requirements of GS-ET-
29, providing eye and face protection against a
risk of a fault arc: GS-ET-29 Class 1, 4kA (155KJ/m²
or 3.7 cal/cm²).*
*The EVOGuard® C5 Max should be used as part of an arc flash protective ensemble that also includes suitable arc flash protective clothing and gloves.
